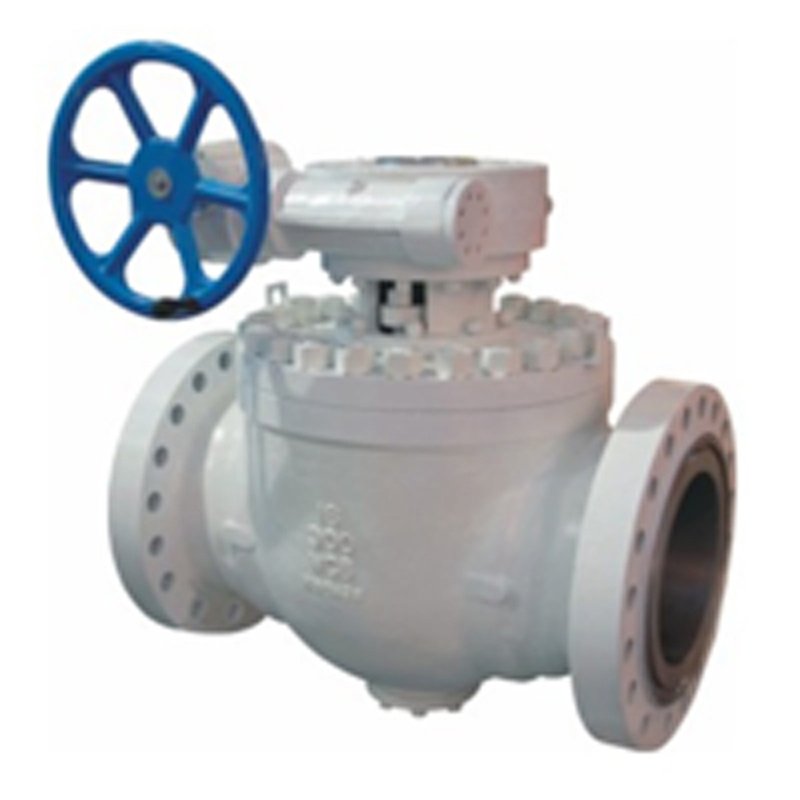

Top Entry Ball Valve

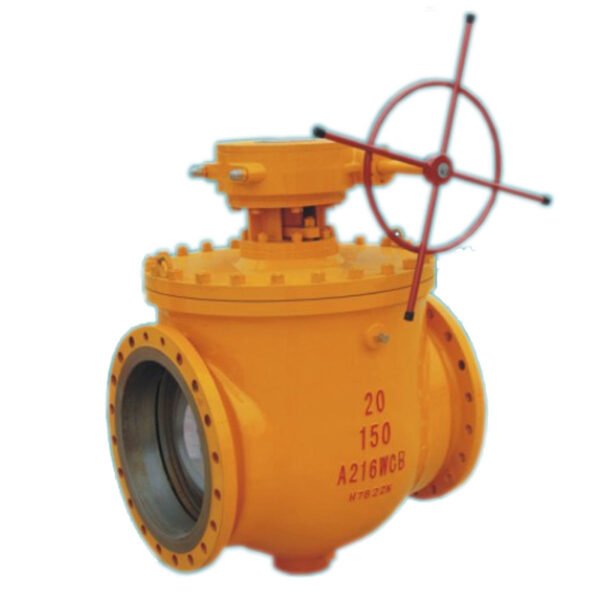

top1

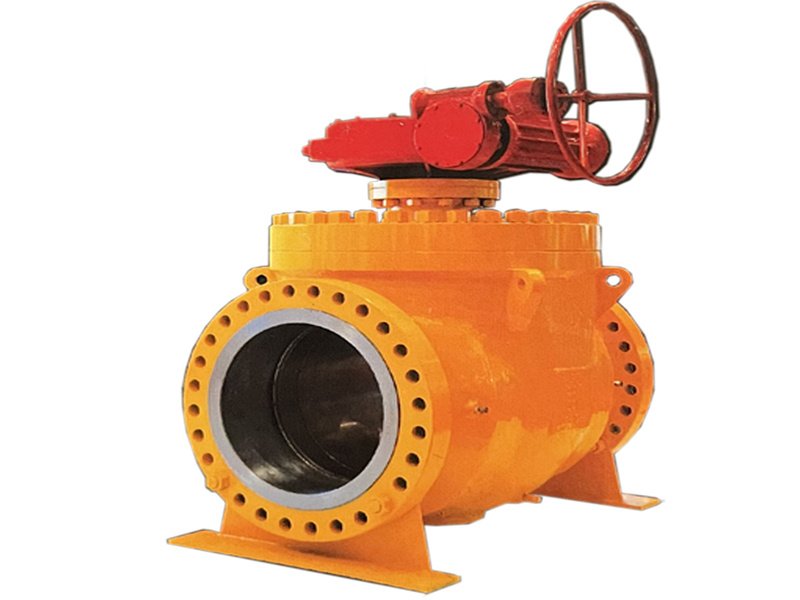

顶装式球阀

Category Ball Valve Tags integral body, low torque, online repair and maintenance, Top entry

Additional information

Size/Rating	NPS 2~48/Class 150~2500
Body Materials	Carbon Steel (WCB), Stainless Steel (CF3M, CF8M), Low Temperature Steel (LCC), etc
Design Standard	API 608, API 6D, BS 5351
Face to Face	API 6D, ASME B16.10, JIS B2002
End	Butt Welding, Flange
End Dimension	ASME B16.25, ASME B16.5, MSS SP-44/ASME B16.47
Test & Inspection	API 598, API 6D
Actuator	Handle, Gear, Electric, Pneumatic
Notes	The size of valve flange and butt-welding terminal can be designed according to the customer's requirement.

Product Details:

With the technology up to the domestic leading level, our top entry ball valves can compete with international counterparts. Besides the features borne by the side entry fixed ball valve, they are also given the features as below.

Structural Features

Locking device
Integral body structure, top entry trunnion to fix and support
Inconel bellows spring makes the sealed metal seat moving toward the ball, providing the two-way seal function of inlet and outlet
Retractable valve seat, realize online stem, sealing ring, metal seat and bellow spring replacement
Easy to install and repair, long performance life. Top online maintenance function
Antistatic device
Fire protection design
ISO 5211 top flange
Reliable Sealing Structural
Spherical seat different from ordinary ball valves, which can automatically adjust the seal position
DBB(Double Block & Bleed)
Hand operated entry ball valve adopt high strength one-piece stem structure to ensure the precise positioning of the ball
Low torque design for easy operation
