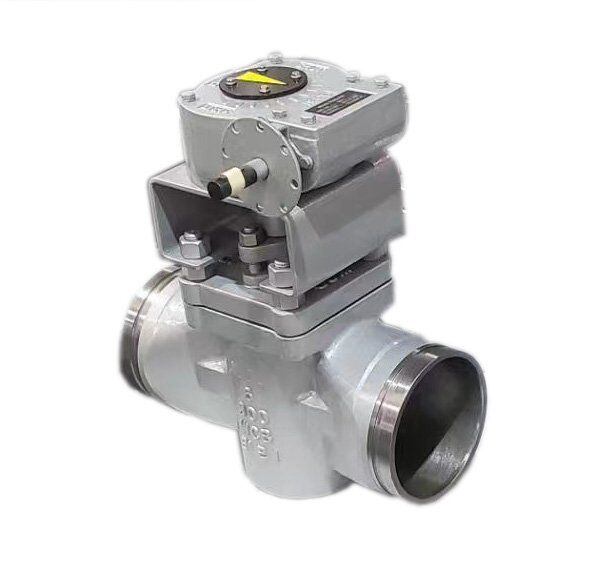

Sleeve type Plug Valve (Soft seal)

Category Tags , ,

Additional information

Size/Rating

NPS 1/2~40/Class 150~1500
Body Materials

WCB,A105,LCB,LF2,CF8/F304,CF8M/F316,CF3/F304L,CF3M/F316L,F51,Forged or casting alloy steel,etc
Design Standard

API 6D, API599
Face to Face

ASME B16.10, EN 558 R1/F1/F4/F5
End

Butt Welding, Flange
End Dimension

ASME B16.25, ASME B16.5, EN 1092
Test & Inspection

API 598, API 6D
Actuator

Electric, Pneumatic, Hadraulic device, Handle, Gear
Notes

The size of valve flange and butt-welding terminal can be designed according to the customer's requirement.
ASK FOR A QUOTE

Product Details:

The sleeve plug valve is a soft seal plug valve,  which can be widely used in various industries such as natural gas, petroleum, chemical, pharmaceutical, fertilizer, electric power, etc.

Structural Features

  • It has a unique 360° metal edge to protect and fix the sleeve, and a soft sealing surface circling the sleeve to realize zero leakage.
  • No cavity in the valve for accumulation of medium
  • Plug self-cleaned by the metal edge when rotated, especially suitable for the glutinous and easy smudge conditions.
  • Double-direction flow leads the installation and operation more convenient.
  • Optional parts materials and flange dimension
