| Size/Rating | NPS 1/2~40/ Class 150~2500 |
|---|---|
| Body Materials | WCB,A105,LCB,LF2,CF8/F304,CF8M/F316,CF3/F304L,CF3M/F316L,F51,Forged or casting alloy steel,etc |
| Design Standard | API 6D, API599 |
| Face to Face | ASME B16.10, EN558-R1 |
| End | Butt Welding, Flange, Socket |
| End Dimension | ASME B16.25, ASME B16.5, EN 1092 |
| Test & Inspection | API 598, API 6D |
| Actuator | Electric, Pneumatic, Hadraulic device, Handle, Gear |
| Notes | The size of valve flange and butt-welding terminal can be designed according to the customer's requirement. |

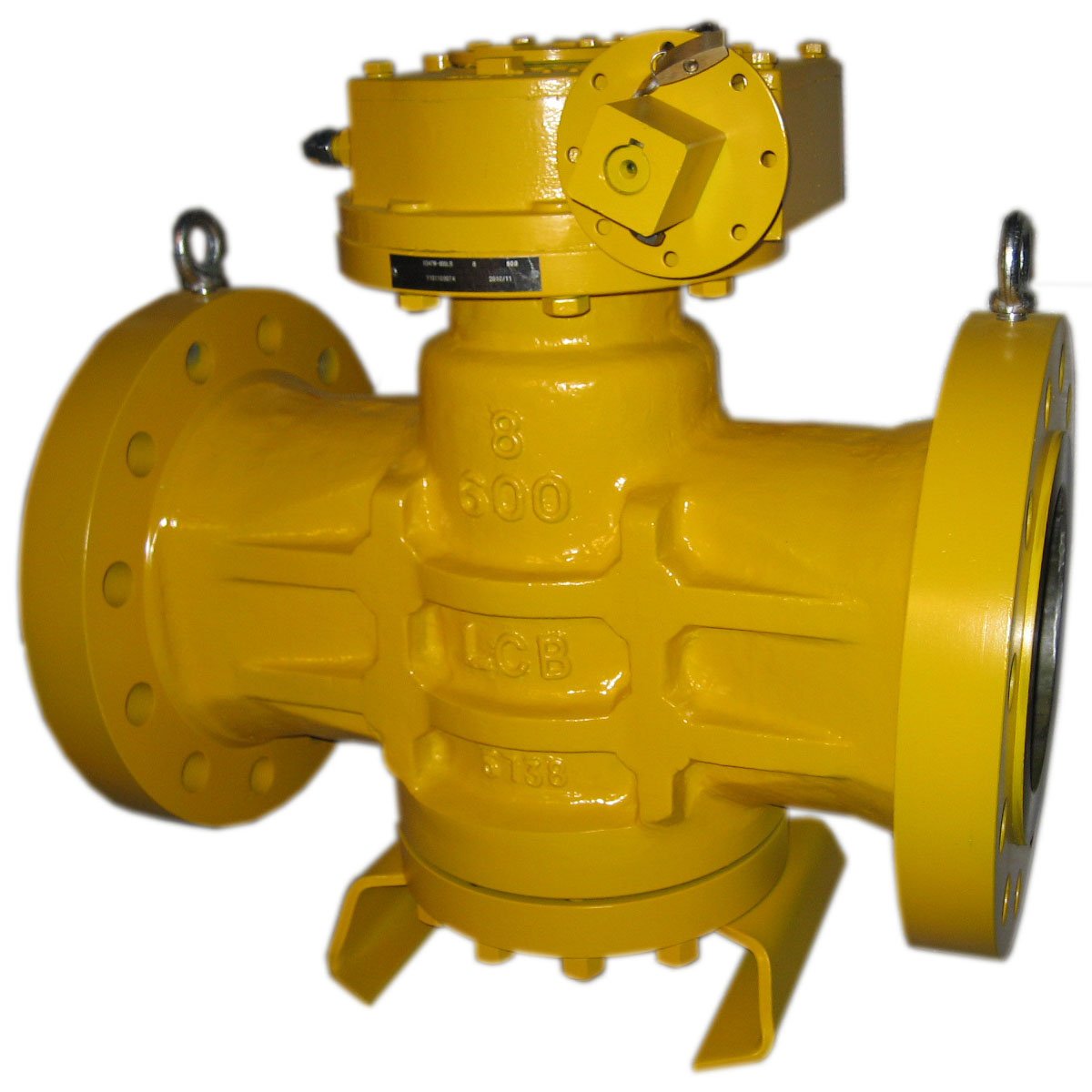

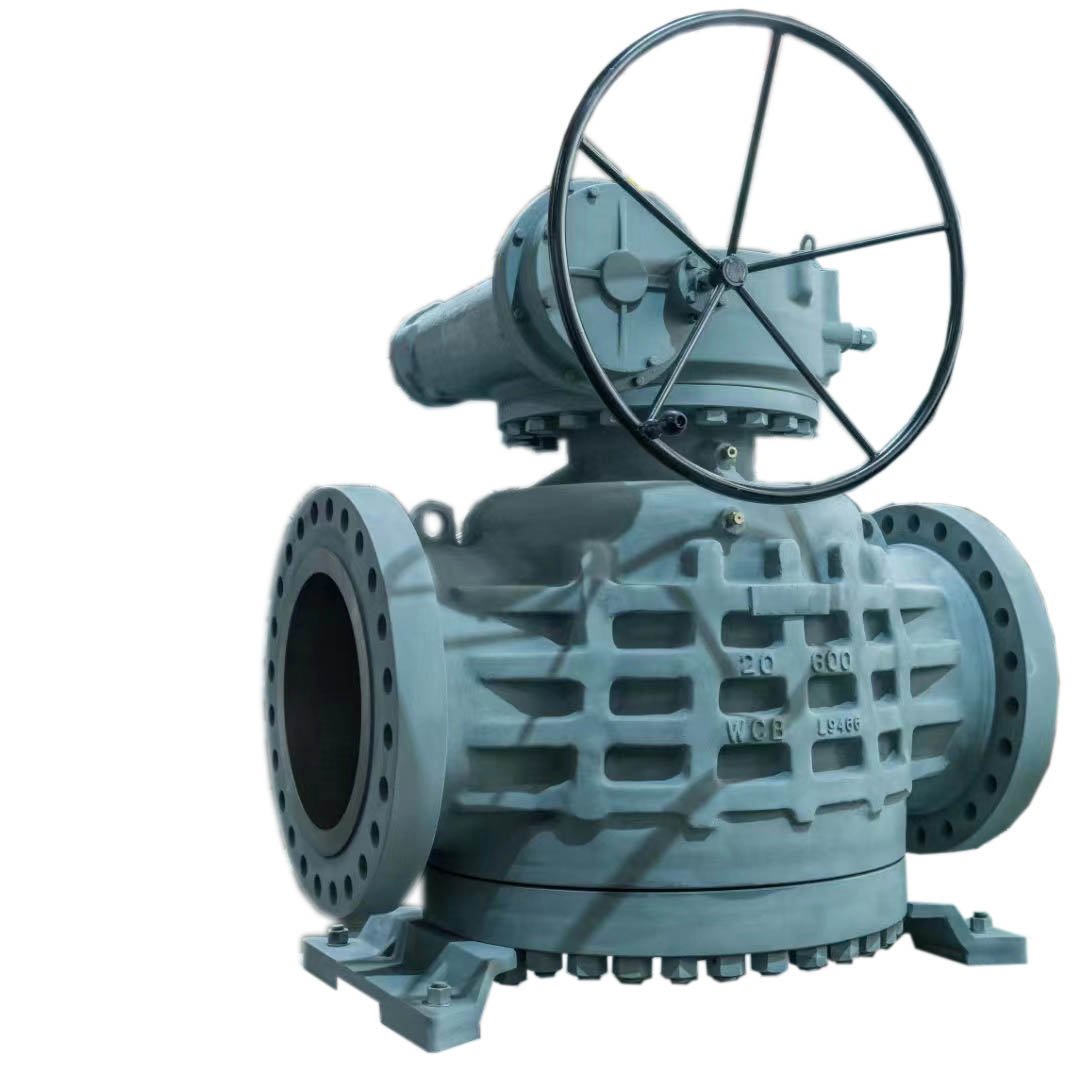

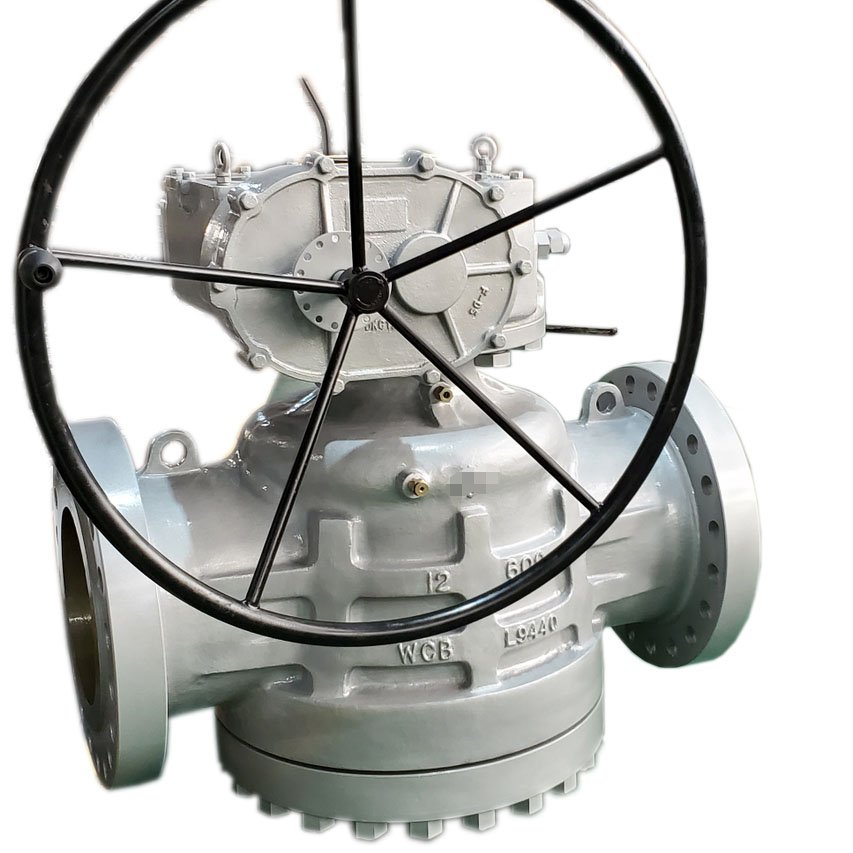

The inverted pressure balance lubricated plug valve is widely used for cutting and connecting pipeline mediums in various industries such as natural gas, petroleum, chemical, pharmaceutical, fertilizer, electric power, etc.
This kind of plug valve utilizes the structure of completely metal sealed and the advantage of supplying sealant at any time to overcome the demanding applications of natural gas, such as high-pressure difference, throttling, unloading and blowdown, etc, with a working temperature of -29~300℃。

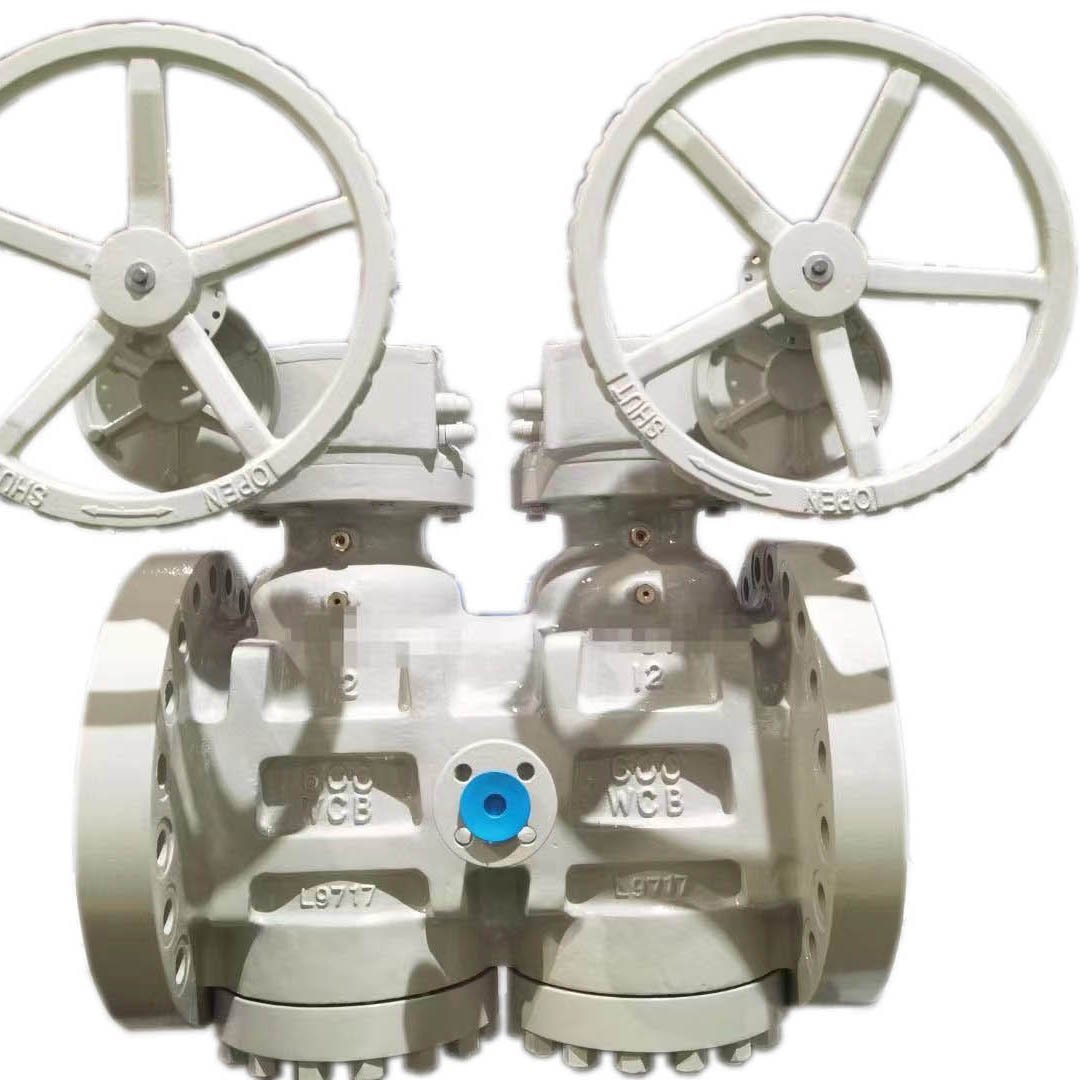

Also, the lubricated valve can be made as DBB, 3-way and 4-ways to meet different application requirements.
