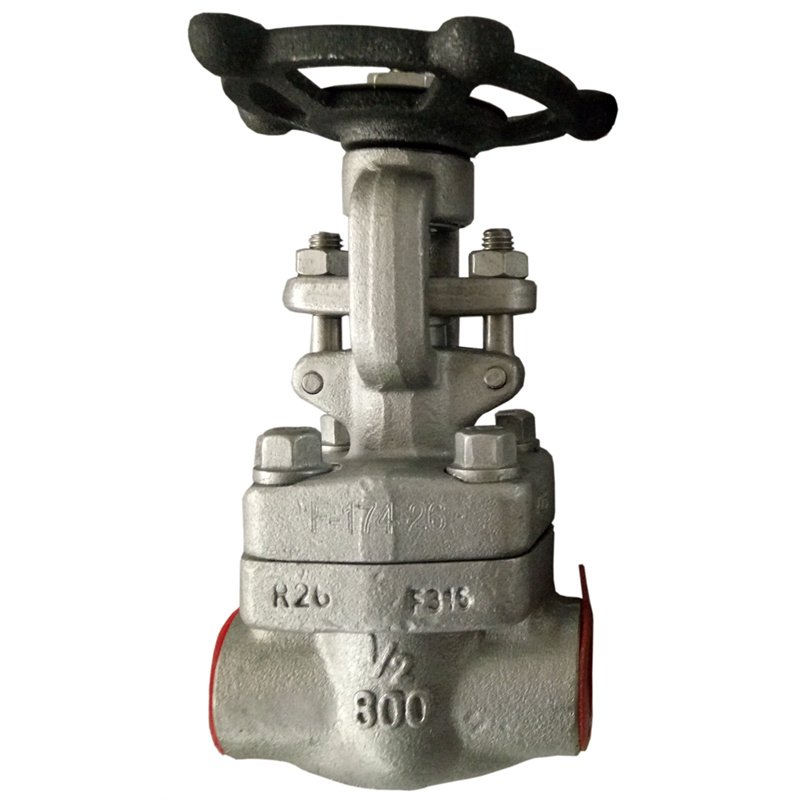

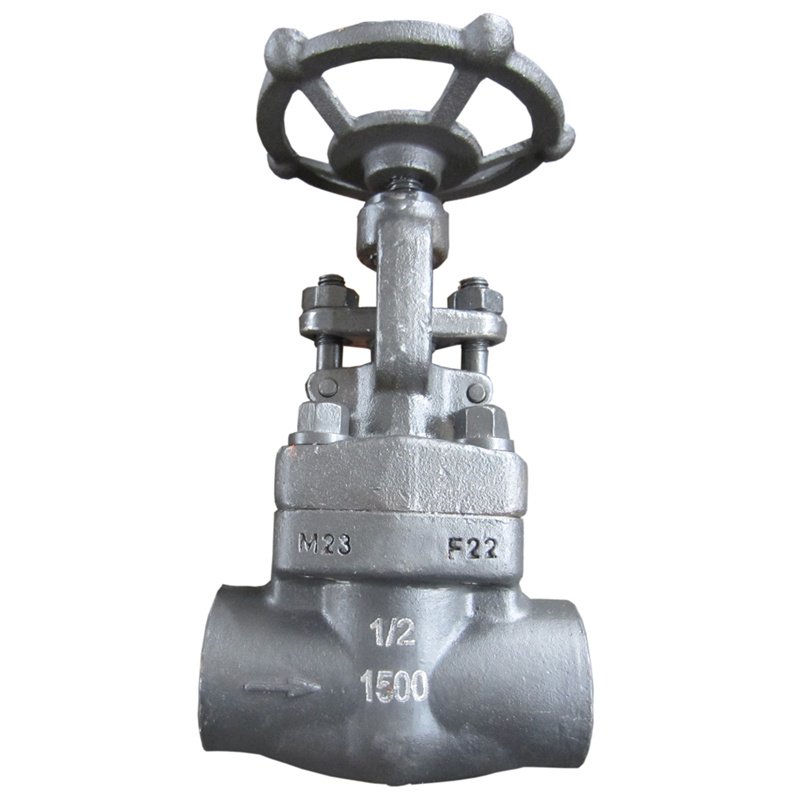

Forged Gate/ Globe/ Check Valve

Additional information

Size/Rating

NPS 1/2~2/Class 150~2500

Body Materials

20 Alloy, A105N,F304,F304L,F316,F316L,A350 LF2, etc, F11,F22,F321,F317,F347,F91, Hastelloy, INCONEL, MONEL

Design Standard

API 602, BS 5352, ASME B16.34

Face to Face

ASME B16.10

End

Butt Welding, Flange, Socket, Thread

End Dimension

ASME B1.20.1, ASME B16.11, ASME B16.25, ASME B16.5

Test & Inspection

API 598

Product Details:

Valves of this series are available in three bonnet designs. Bolted bonnet, welded bonnet, and pressure seal bonnet on customers’ request.

Structural Features

  • Full port or reduced port
  • Outside screw and yoke (OS & Y)
  • Two-piece self-aligning packing gland
  • Integral backseat
  • Solid wedge
  • Optional bellows seal
  • Optional plug or needle disc (Globe)

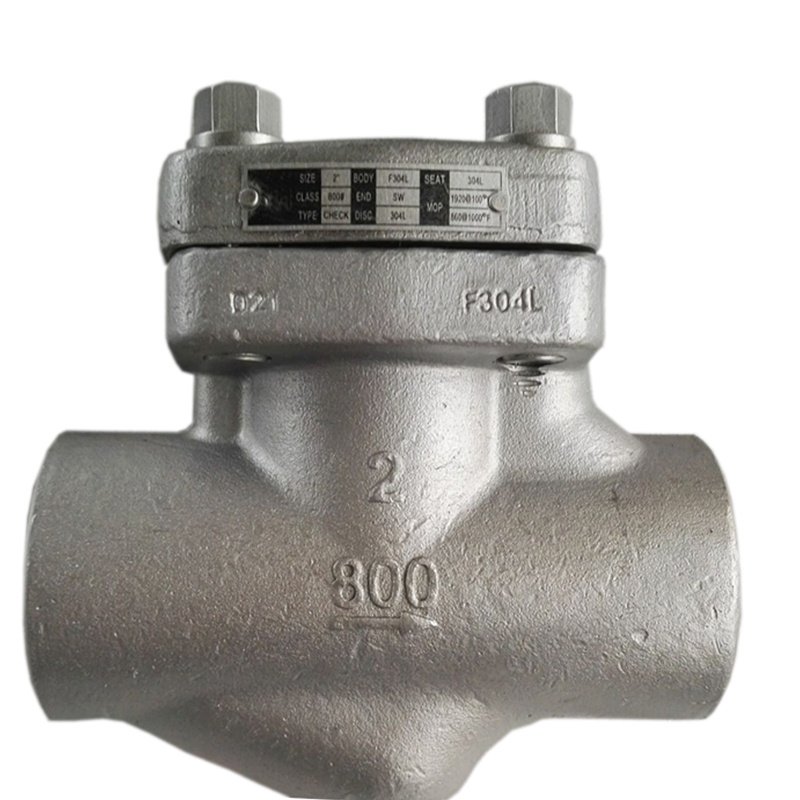

  • Optional lift or swing disc (Check)
