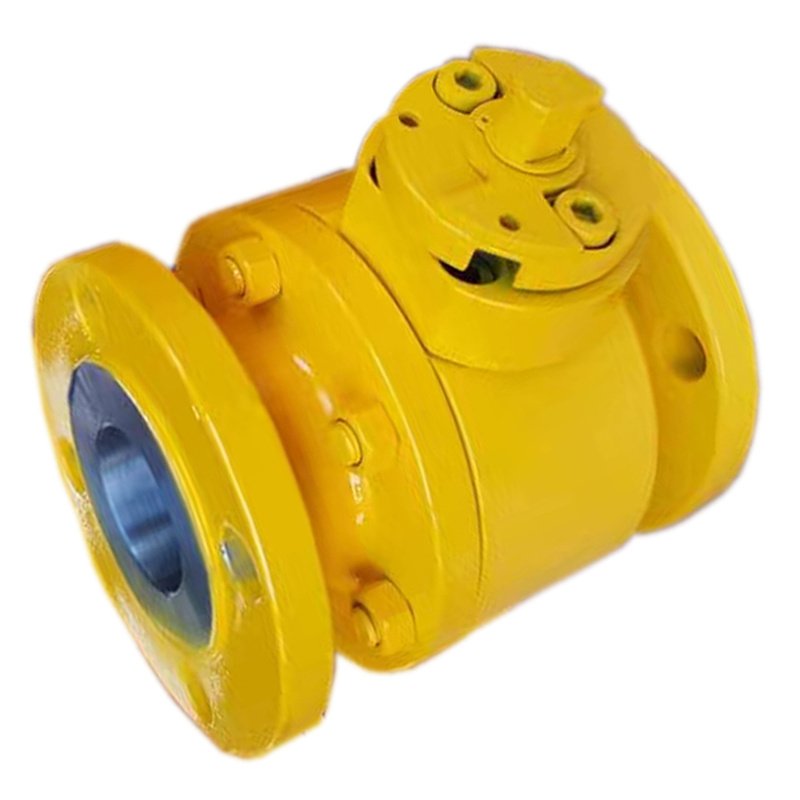

Floating Ball Valve

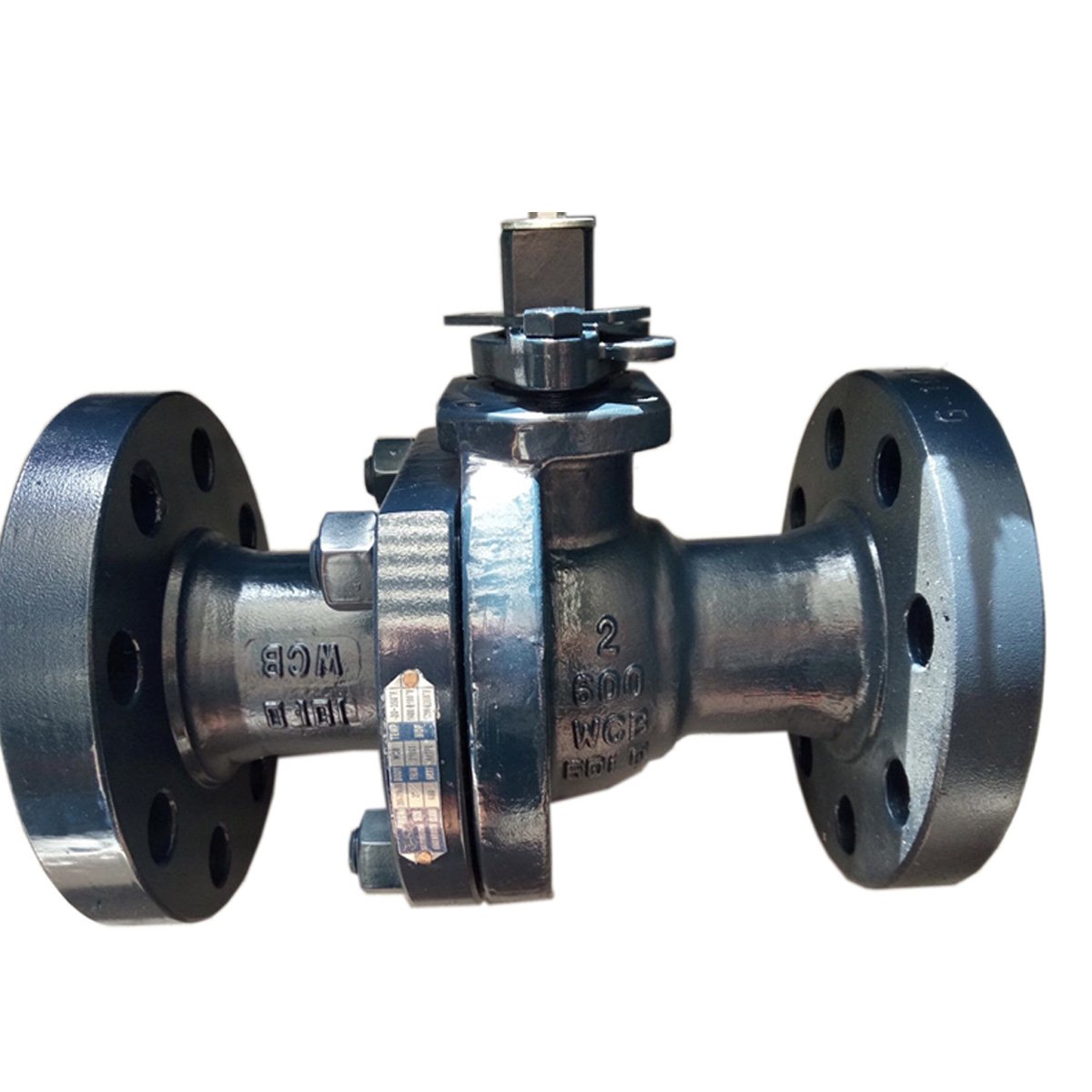

3-1

Category Ball Valve Tags Floating, Metal to Metal Seat, Soft Seat

Additional information

Size/Rating	NPS 1/2~10/Class 150~1500
Body Materials	Casting and forged carbon steel, Cryogenic steel, Duplex steel, Stainless steel
Seat	Soft (PTFE/RPTFE/ NYLON/ PEEK, etc), Metal to metal
Design Standard	API 608, API 6D/ISO 14313, ASME B16.34, BS 5351, ISO 17292
Face to Face	API 6D, ASME B16.10
End	Flange, Socket, Thread, Weld
End Dimension	ASME B16.25, ASME B16.5, MSS SP-44/ASME B16.47
Test & Inspection	API 598, API 6D
Actuator	Handle, Gear, Electric, Pneumatic
Notes	The size of valve flange and butt-welding terminal can be designed according to the customer's requirement.

Product Details:

Floating ball valves are our superior products developed upon the advanced technology home and abroad. Provided with updated design ideas, they meet the requirement on safety and convenience in general industry standards.

Structural Features

Switch indication of hand-operated float ball valve
Locking device
Anti-blow out stem
Antistatic device
Fire protection design
ISO 5211 top flange
Middle flange leak-tight structure
Reliable seating design
Self-relieving structure
Full and reduce bore
Low torque design, flexible switch and easy operation
